Moto & Fat Tire

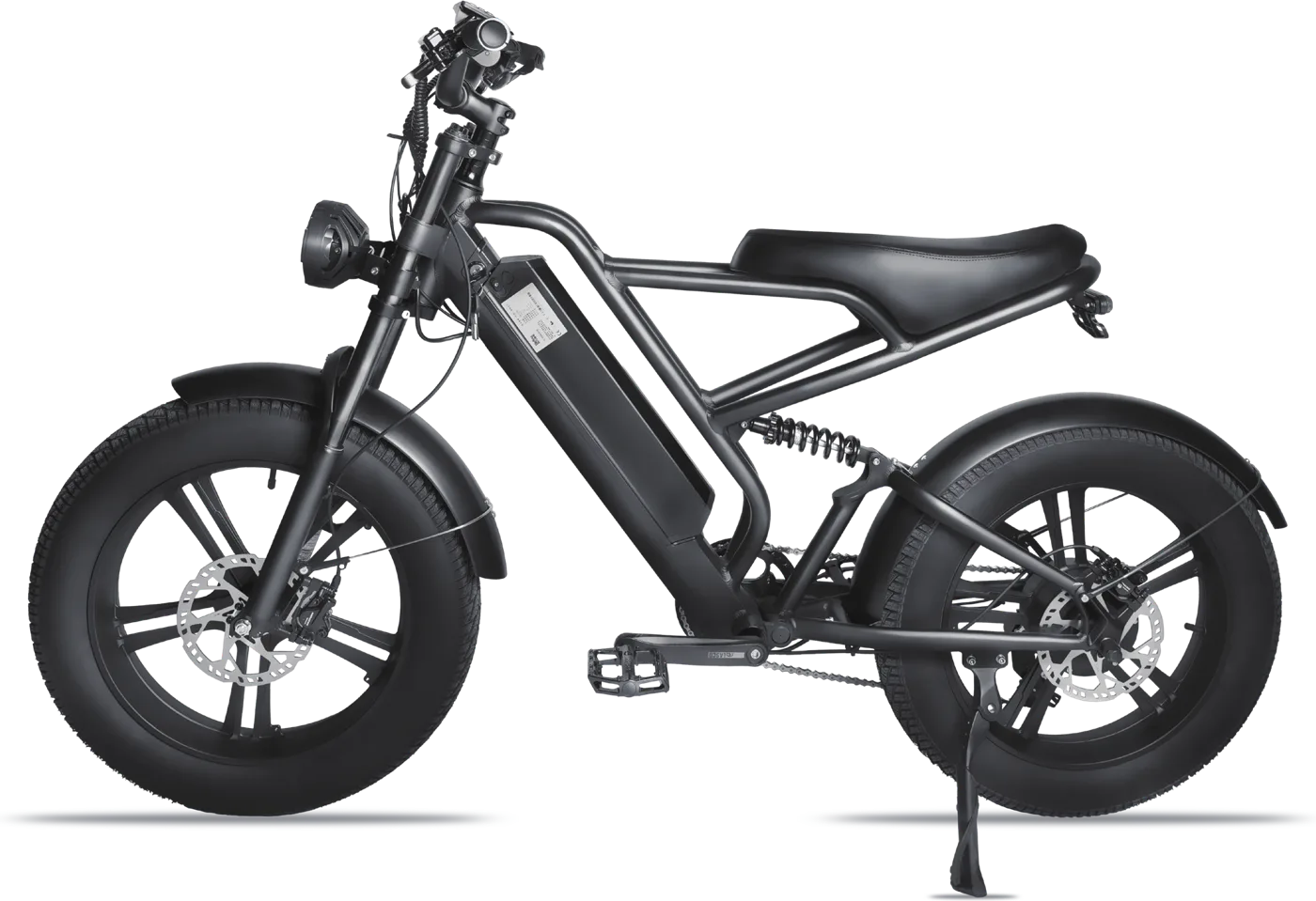

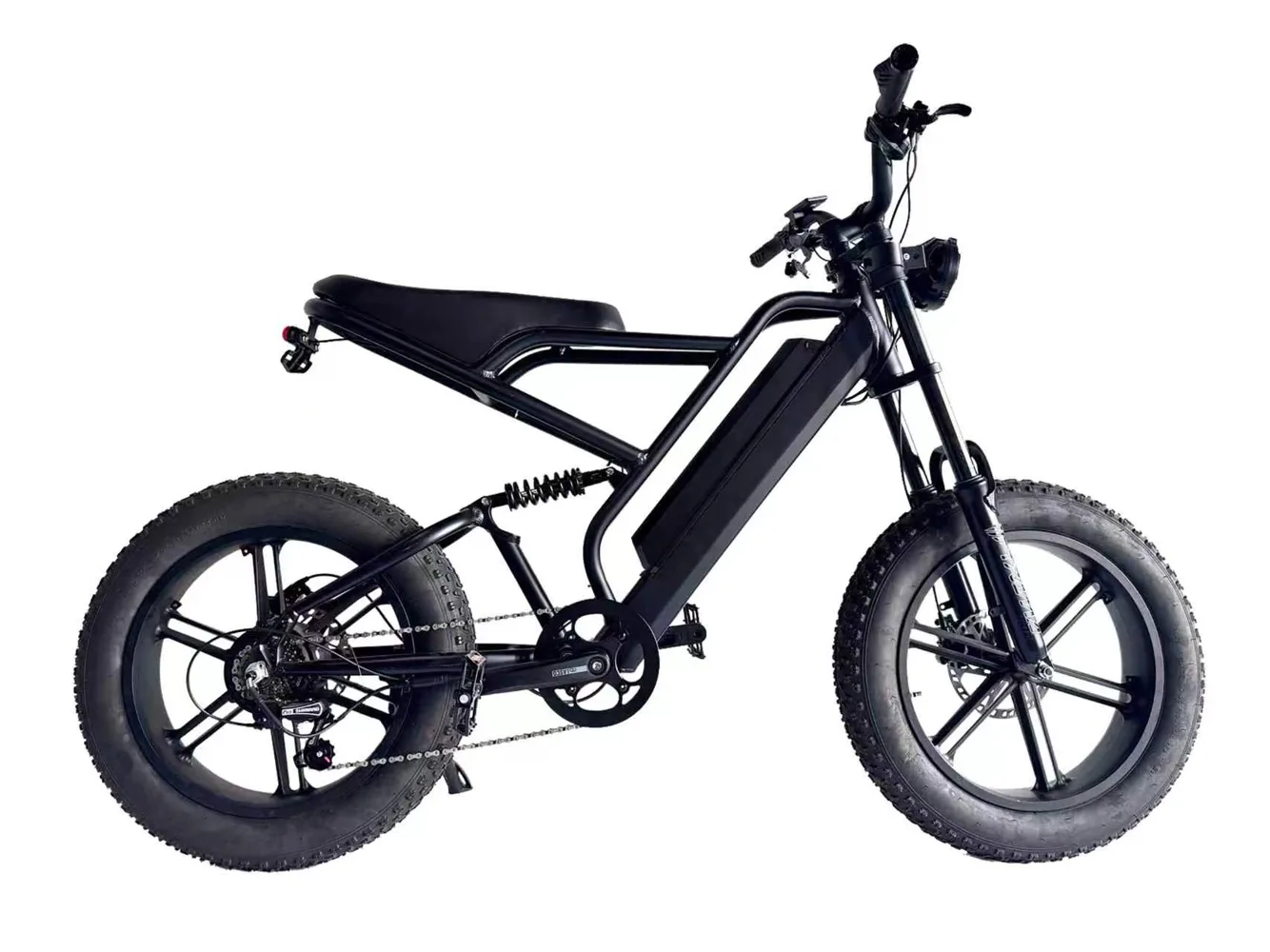

E-Fat 20
Full-suspension fat-tire bike with hydraulic brakes. Standard 500W motor, with 750W and 1000W upgrades for higher-power and off-road builds.
- Full suspension
- Up to 1000W
- Motor
- 500–1000W
- Battery
- 600 Wh
- Range
- 50+ mi
Speeds, power and battery can be configured to your market. Specs shown are the standard build.
The details
Full specifications
Electrical
| Motor | 48V 500W rear hub (750W / 1000W optional) |
|---|---|
| Battery | 48V 12.5Ah (600 Wh) |
| Controller | 48V 20A |
| Display | LCD |
| Lights | Front and rear |
| Charger | 110–240V, 54.6V 3A |
Components
| Frame | 6061 aluminum, custom color |
|---|---|
| Tires | 20 × 4.0" |
| Suspension | Front fork (custom logo) and rear shock |
| Brakes | Hydraulic disc |
| Drivetrain | Shimano Tourney 7-speed, 48T, KMC Z7 chain |
| Saddle | Leather |
Performance
| Speed | 25–45 km/h (15–28 mph), configurable |
|---|---|
| Range | 80+ km (50 mi) on pedal assist |
| Lead time | 45–60 days |
Dealer & brand inquiries
Make it your own.
Tell us your target market, specification and order volume.
